Efficient glioma grade prediction using learned features extracted from convolutional neural networks

Introduction

Brain tumor is an abnormal growth of cells within the brain or the surrounding tissues of the central nervous system (CNS). In the US, there are 23 out of 100,000 population diagnosed with brain tumors in 2011–2015 (1). These tumors can be either benign or malignant (2). Malignant brain tumors require aggressive therapies and are the most challenging to treat. The most common malignant brain tumor in adults is gliomas. Gliomas originate from the glial cells that provide support and protection to neurons and play a crucial role in maintaining the normal functioning of the nervous system. The prevalence of gliomas is approximately 5–10 per 100,000 in the population every year (3). Gliomas are classified into low-grade (least aggressive) and high-grade (most aggressive). The prognosis of a patient with glioma is highly related to the tumor grade (1). Patients with high-grade glioma (HGG) have a poor survival rate, despite treatment options including chemotherapy, radiation therapy, and surgery (4). The survival rate after diagnosis of a brain tumor is 35.8% (5). Especially, patients with the most aggressive brain tumor, glioblastoma multiforme (GBM), have a survival period of 12–16 months, even with advanced treatments (6).

Treatment to a patient with glioma depends on the tumor grade (7,8). Traditionally, glioma grade is determined by pathologists in an invasive manner, by examining a tissue sample under a microscope. This process is expensive, time-consuming, and can have human errors. Therefore, an accurate and robust non-invasive diagnosis method for grade prediction is highly desirable.

In the past, several studies have demonstrated the use of radiomic features to grade gliomas non-invasively from magnetic resonance (MR) images. To classify low-grade glioma (LGG) from HGG, Skogen et al. (9) used histogram-based texture analysis on 95 patients. This study reported a receiver operating characteristic area under the curve (ROC AUC) of 0.910 (9). Tian et al. (10) used a support vector machine (SVM) model to classify grades and reported an accuracy of 98%. In another study, random forest (RF) classifier was used on the radiomic and wavelet-based features and reported an accuracy of 97.54% (11). These studies first extracted the radiomic features from MR images and then these features were used by machine learning (ML) models for determination of glioma grade. It is important to note that ML models, such as SVM, decision trees (DT), RF, and gradient boosting classifier, perform well when the data is limited but require extraction of features. Additionally, these prior studies used hand-engineered features that are straightforward to extract. We believe that the information extracted in these features is limited, thereby, restraining the performance of ML models. Therefore, it is required to build models that learn features directly from MR images.

Recently, several deep learning (DL) models, specifically utilizing convolutional neural networks (CNNs) that learn features from the MR data in a layer-by-layer manner were proposed for glioma grade classification (12,13). For the classification of LGG and HGG, Ertosun and Rubin (14) proposed a CNN and reported an accuracy of 96%. In another study, a CNN and genetic algorithm was proposed by Anaraki et al. (15) and reported an accuracy of 90.9%. In another study, a transfer-learning based approach for glioma grading was proposed by Yang et al. (16), and reported an accuracy of 90%. The CNNs proposed in recent times have the ability to learn features directly from MR images. But it is important to note that these DL methods are data hungry, requiring lots of data to learn robust and meaningful features.

In this paper, we propose a CNN + ML model for accurate grade classification. A CNN model was used to learn features and these learned features are then used by ML models for grade classification. To account for limited data problem, 2D slices were extracted from 3D scans and these 2D slices were used in training CNN model to extract robust features. This approach takes advantage of both CNN model that can learn robust features and ML models that perform well in limited data cases. We compare the proposed approach with the radiomic features and other state-of-the-art CNN models that were used for feature extraction.

Methods

In this section, we first provide the data description and then the different methods utilized for grade classification would be described.

Imaging data description

The dataset used in this work were from the brain tumor segmentation 2018 (BraTS2018) challenge (17,18). BraTS initial focus was only on the evaluation of state-of-the-art methods for the segmentation of brain tumors in multimodal magnetic resonance imaging (MRI) scans (19). Later, the same dataset was being used for other tasks such as grade classification and overall survival rate prediction.

The BraTS 2018 dataset consists of multi-institutional clinically-acquired pre-operative multimodal MRI scans of glioblastoma (GBM/HGG) and LGG (17,18). The dataset consists of 210 patients with HGG and 75 patients with LGG, making it a total of 285 patients. For each patient, the following scans were collected: (I) native (T1); (II) post-contrast T1-weighted (T1Gd); (III) T2-weighted (T2); and (IV) T2 fluid attenuated inversion recovery (FLAIR) volumes. The representative LGG and HGG scans for different sequences were shown in Figure 1. Top row corresponds to HGG scans and bottom row corresponds to LGG scans. Columns 1–4 correspond to FLAIR, T1, T1CE, and T2 scans respectively. The datasets were provided after the following pre-processing steps: (I) co-registered to the same anatomical template; (II) interpolated to the same resolution (1 mm³); (III) skull-stripped; (IV) manual segmentation of tumors by experienced neuro-radiologists (17,18,20).

Figure 1 Representative LGG and HGG scans from the BraTS2018 dataset. Top row corresponds to scans from a HGG patient and bottom row corresponds to scans from an LGG patient. First column shows FLAIR scans, second column shows T1, third column shows T1CE, and the fourth column shows T2 scans. Note that a radiologist cannot determine the grade from these brain MRI scans. HGG, high-grade glioma; LGG, low-grade glioma; FLAIR, fluid attenuated inversion recovery; T1CE, T1 contrast-enhanced; MRI, magnetic resonance imaging.

It is important to note that the scans were acquired with different clinical protocols and various scanners from multiple (n=19) institutions. In contrast, the private datasets collected by a single organization vary in the imaging modalities used, the time of data collection, and in the processing techniques employed to clean the data. For these reasons, it is difficult to compare the performance of various algorithms using private datasets.

Radiomic feature extraction

PyRadiomics (21), an open-source package was utilized to extract radiomic features from brain tumor images. The flowchart showing the pipeline of grade classification using radiomic features was shown in Figure 2.

Figure 2 Radiomic feature extraction process. The input are scans from BraTS2018 dataset. (A) Extraction of radiomic features for each sequence using PyRadiomics; (B) concatenation of features to create a multi-model feature set for each patient; (C) data pre-processing involves oversampling to balance the training dataset and scaling for faster training; (D) ML models, support vector machine, decision tree, random forests, and XGBoost trained on radiomic features for prediction of glioma grade. SVM, support vector machine; XGB/XGBoost, Xtreme gradient boosting; ML, machine learning.

Step A: the initial step involves the extraction of radiomic features, that capture valuable information, from different sequences (T1, FLAIR, T2, T1CE). A total of 110 features were extracted from each sequence, which include First Order Statistics (19 features), Shape-based (3D) (16 features), Gray Level Co-occurrence Matrix (24 features), Gray Level Run Length Matrix (16 features), Gray Level Size Zone Matrix (16 features), Neighbouring Gray Tone Difference Matrix (5 features), and Gray Level Dependence Matrix (14 features) (22).

Step B: subsequently, we have concatenated the features extracted from different sequences corresponding to a single patient, to create a multi-modal feature set. This consolidation enhances the model’s ability to leverage multimodal data for accurate tumor segmentation.

Step C: as part of pre-processing, we stratified split the data into training and testing in the ratio of 75% and 25% respectively. We then employed synthetic minority oversampling technique (SMOTE) oversampling technique (23) on the training data to create a balanced dataset. Subsequently, data normalization has been applied to ensure that the training data is uniformly scaled for faster training of ML models.

Step D: the pre-processed training datasets were given as the input to various ML models, including SVM (24), DT (25), RF (26), and Xtreme gradient boosting (XGBoost) (27) to build the model for glioma classification. Five-fold cross-validation was performed to tune the hyperparameters of ML models. The trained models were then evaluated on the test data.

Learned feature extraction

In this subsection, we detail the methods that were used for extraction of learned features.

Pre-processing

The pre-processing pipeline implemented for extraction of learned features from CNN’s was presented in Figure 3.

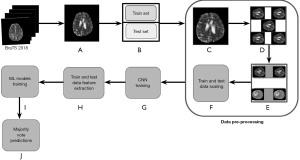

Figure 3 Pipeline used for extracting learned features. The input are the scans from BraTS2018 dataset. (A) Extraction of 2D slices from 3D data; (B) split the data into training and testing based on patients; (C) resizing and cropping to reduce the dimension and remove the excess black region around the skull; (D,E) data augmentation and oversampling to balance the dataset; (F) data scaling for faster model training; (G) design of various CNN models to learn the features; (H) extraction of learned features that were given as inputs to ML models; (I) support vector machine, decision tree, random forest, and XGBoost algorithms were trained for grade prediction; (J) majority voting was performed to combine slice-level predictions into patient-level. CNN, convolutional neural network; ML, machine learning; XGBoost, Xtreme gradient boosting.

Step A: image extraction

Each patient data consists of four sequences, T1, T1CE, T2, and FLAIR and each sequence is three-dimensional. To account for limited data problem, we first extracted 2D images of size 240×240 from FLAIR, T1CE, and T2 sequences. We excluded T1 sequence due to the limited information present in these images (28). Note that in each 3D sequence, there are 188 slices and only slices from 56 to 136 were included in the study. This range was chosen as it contains the most pertinent information for glioma analysis, avoiding slices that are predominantly black or lacking significant diagnostic features. Note that all the slices from 56 to 136 were included to avoid any data loss, though the neighboring slices may be very similar to each other, leading to redundancy.

Step B: train-test split

We performed patient-level train-test split in the ratio of 75% and 25%. Note that performing patient level split is crucial for avoiding data leakage. Note that the hyperparameters (such as depth of the DT, number of estimators in RF and gradient boosting algorithms, cut-off for defining HGG and LGG) of ML models, were tuned using five-fold cross-validation. Since the dataset is imbalanced, F1-score (harmonic mean of precision and recall) was used as a metric to determine optimal hyperparameters. For instance, to determine optimal cut-off, F1-score was computed at different probability thresholds and the one with the highest F1-score was chosen.

Step C: resizing and cropping

As part of pre-processing, we have resized the extracted images in step A of Figure 3 from 240×240 to 190×190 to reduce the number of trainable parameters. Any further reduction in the size significantly impacted the image quality. We then cropped these resized images to 120×120 to eliminate the external excess black region around the skull part.

Step D: data augmentation

Data Augmentation technique involved generating different versions of the images introducing variations such as rotations, flips. This part of the pre-processing was aimed to enhance model’s ability to generalize well in case of limited data. It is important to note that the data augmentation was performed only on the train set.

Step E: oversampling

To address the problem of class imbalance in the dataset, we have employed oversampling technique. This process involves the replication of minority class data which in our case is LGG, thereby balancing the class distribution and improving the model’s performance.

Step F: data scaling

We have applied normalization on both train and test sets for faster training of CNN models.

Step G: CNN model training

This step involves training different CNN models that were discussed next. The main goal of these CNN models is to learn informative features from the tumor images that are valuable for accurate grade classification.

Step H: CNN feature extraction

Upon CNN model training, we extracted features for both train and test sets. These features provide a rich representation of tumor characteristics.

Step I: training ML models

The extracted features from step H of Figure 3 were used to train various ML models which include the SVM, DT, RF, and XGBoost.

Step J: majority voting

Note that the steps described above from A to I of Figure 3 were performed on 2D images. To determine the grade of a patient, we utilize a majority voting scheme, where the most frequently occurring class of a patient’s feature vectors will be considered as the patient’s grade.

Existing methods

Autoencoder trained on individual sequences for feature extraction

Autoencoder is an unsupervised learning algorithm, mainly used for the task of representation learning (29). The autoencoder architecture used to extract features is presented in Figure 4

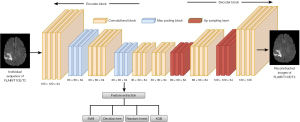

Figure 4 The input to the autoencoder network is a T1CE/T2/FLAIR sequence and the goal is to reconstruct the input. An autoencoder was trained for each sequence T1CE, T2, and FLAIR. The architecture consists of an encoder block for spatial dimension reduction and a decoder block for input sequence reconstruction. After the training, features were extracted from the encoder block and were given to ML models for glioma grade prediction. FLAIR, fluid attenuated inversion recovery; T1CE, T1 contrast-enhanced; XGB, Xtreme gradient boosting; SVM, support vector machine; ML, machine learning.

As shown in Figure 4, the network consists of an encoder block and a decoder block. The encoder block comprises of convolutional and max-pooling layers, that are responsible for reducing the input dimensionality, and serve as feature extractor. The decoder block, following the latent space, consists of up-sampling layers to reconstruct the input data from the compressed representation from the encoder block. The autoencoder architecture visually demonstrates the compression and eventual reconstruction of the input image.

Three individual autoencoders were trained, one for each sequence (T1CE, T2, and FLAIR), with the architecture shown in Figure 4. Each individual autoencoder was built with the main goal of reconstructing the input image with minimal error possible, thereby enabling the extraction of meaningful features from the encoder block.

The output of the encoder block was used to extract features from each sequence individually. Once the features were extracted from each sequence, they were concatenated to form a multimodal feature set. These concatenated features were then used to train ML models, SVM, RF, DT, and XGBoost, for glioma grade prediction. Note that the majority voting was utilized to obtain patient-level grade prediction.

CNN trained on stacked sequences for feature extraction

The CNN architecture employed to learn features from stacked T1CE/FLAIR/T2 sequences (30) was shown in Figure 5. The input to the architecture is of shape (120×120×3), where 120×120 represents the dimensions of the image formed after the pre-processing pipeline and 3 represents various sequences (FLAIR, T2, and T1CE) to form a multi-modal input for the 2D-CNN. The architecture comprises a series of convolutional layers, each followed by max-pooling layers to strategically down-sample the spatial dimensions. The flattened output from the convolutional layers leads to two dense layers with rectified linear unit (ReLU) activation function and dropout for regularization. The final output layer consists of a single neuron with a sigmoid activation function for binary classification.

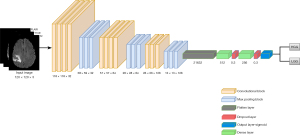

Figure 5 Architecture of 2D-CNN trained on stacked FLAIR, T1CE, and T2 sequences. The network consists of convolutional and max-pooling layers for spatial dimension reduction and dense layers for feature extraction and classification. After the model training, features were extracted from dense layers and were given as inputs to ML models for prediction of glioma grade. FLAIR, fluid attenuated inversion recovery; T1CE, T1 contrast-enhanced; HGG, high-grade glioma; LGG, low-grade glioma; CNN, convolutional neural network; ML, machine learning.

After the 2D-CNN was trained, features were extracted from the dense layer comprising 256 neurons that provide a rich representation of tumor characteristics. These features were then used to train various ML algorithms, SVM, RF, DT, and XGBoost. The majority voting technique was utilized to determine the glioma grade for each patient.

U-Net trained on stacked sequences for feature extraction

The U-Net architecture (31), was first designed and applied in 2015 to process biomedical images. The input to the network consists of stacked sequences of shape (120×120×3), where 120×120 represents the image size and 3 represents different sequences (T1CE, T2, and FLAIR). The U-Net (31) architecture, as shown in Figure 6 consists of encoder-decoder blocks. The encoder block consists of convolutional layers, max-pooling layers for downsampling, and batch normalization to make training faster and more stable reducing issues related to internal co-variant shift (32). On the other hand, the decoder block consists of up-sampling layers to restore the spatial dimensions. The concatenation layer in the decoder blocks played an important role in preserving the spatial features lost during the downsampling process. They combine the feature maps from different levels of the network, ensuring that the final output contains both high-level abstractions and low-level details. The final output layer consists of a single neuron with sigmoid activation function for grade classification.

Figure 6 The U-Net architecture trained on stacked T1CE, T2, and FLAIR sequences. The network consists of convolutional and max-pooling layers for spatial dimension reduction, up-sampling layers for image reconstruction, and concatenation layers for preserving the spatial features lost during the down-sampling process. After the model training, features were extracted from the dense layer consisting of 256 neurons. The extracted features were then given as inputs to ML models for grade prediction). FLAIR, fluid attenuated inversion recovery; T1CE, T1 contrast-enhanced; HGG, high-grade glioma; LGG, low-grade glioma; ML, machine learning.

The U-Net architecture has the advantage of extracting features, that capture the complex patterns present in the multi-modal input data. The features, encapsulating the unique characteristics of tumor regions, were extracted from the dense layer with 256 neurons. These features were then used by ML models and majority voting was used for predicting the grade of a patient.

Proposed method: CNN trained on individual sequences for feature extraction

The proposed CNN architecture trained on individual sequences is presented in Figure 7. The architecture consists of three convolutional layers, each followed by a max pooling layer. The output from convolutional layers was flattened and given as input to dense layer with 512 neurons and ReLU activation function. The output from the dense layer was given to a dropout layer to avoid overfitting issues. While the convolutional layers are specialized in feature extraction and spatial dimension reduction, dense layers are capable of further processing the learned features. The output layer consists of a single neuron with sigmoid activation function for binary classification. This layered structure showcases the gradual transition from feature extraction to classification.

Figure 7 Proposed method: the 2D-CNN architecture trained on individual sequences of FLAIR, T1CE, and T2. The network consists of convolutional and max-pooling layers for dimensionality reduction; and dense layers for feature extraction and classification. After the model training, features were extracted from dense layers and were given as inputs to ML models for glioma grade prediction. Note that training a separate CNN model for each sequence significantly reduced the number of trainable parameters, making it a computationally efficient approach. FLAIR, fluid attenuated inversion recovery; T1CE, T1 contrast-enhanced; HGG, high-grade glioma; LGG, low-grade glioma; CNN, convolutional neural network; ML, machine learning.

In this proposed method, we pursued a novel approach by training three simple 2D-CNNs, one for each sequence (T1CE/T2/FLAIR). The main objective of these separate CNNs is to capture the sequence-specific patterns in tumor classification resulting in a simplified and focused learning process. Following the training, features learned by each network on individual sequences have been extracted from the dense layer. These features encapsulate the unique characteristics of each sequence, and they were concatenated to form a multi-modal feature set. These concatenated features subsequently were used to train ML models.

Results

The results obtained from different methods described in “Methods” section were presented in Table 1. These results provide valuable insights about the performance of various feature extraction methods. The metrics accuracy (A), precision (P), recall (R), F1-score (F1), specificity (S), and negative predicted value (NPV) were reported for ML models, SVM, DT, RF, and XGBoost. These ML models were trained on features extracted from various techniques, radiomic features, autoencoder trained on individual sequences, CNN trained on stacked sequences, U-Net trained on stacked sequences, and the proposed method which is CNN trained on individual sequences.

The results of ML models trained on radiomic features extracted by PyRadiomics are shown in the first row of Table 1. The best result was obtained by RF algorithm with an F1-score of 71%. Despite our best efforts in tuning hyper-parameters, the results of ML models trained on radiomic features did not improve. This indicates the lack of important information in radiomic features that is required for accurate glioma grade prediction. These results indicate the necessity of learning the features that are relevant for grade classification.

The results of ML models trained on features learned from autoencoder model are shown in the second row of Table 1. The best result was obtained by RF algorithm with a F1-score of 90%, which is about 19% improvement over radiomic feature extraction.

The results of ML models trained on features learned from CNN model trained on stacked sequences are shown in the third row of Table 1. The best result was obtained by SVM with an F1-score of 92%, which is about 2% improvement over autoencoder model.

The results of ML models trained on features learned from U-Net model trained on stacked sequences are shown in the fourth row of Table 1. The best result was obtained by RF and XGBoost models with an F1-score of 98%. This is about 6% improvement over the SVM model trained from features extracted from CNN model trained on stacked sequences. It is important to note that the results obtained from autoencoder method did not yield the best results compared to other CNN models that were trained with a goal of performing classification. It might be because the primary goal of an autoencoder was to reconstruct the image with minimum reconstruction error which might have overshadowed the feature extraction process.

The results of ML models trained on features learned from the proposed model are shown in the fifth row of Table 1. The best result was obtained by XGBoost algorithm with an F1-score of 98%. Furthermore, the proposed method has a specificity of 95% and a negative predictive value (NPV) of 98%. This reflects the model’s reliability in correctly identifying negative cases (LGG). Note that the optimal threshold for the proposed model was 0.464 as determined by five-fold cross-validation. These results indicate that the features extracted from 2D-CNN’s trained on individual sequences contain information that are relevant for accurate grade prediction.

To provide a detailed analysis of the proposed CNN method performance on the test data, confusion matrix for ML models, SVM, DT, RF, XGBoost (XGB) is presented in Figure 8. The label 1 indicates HGG and label 0 indicates LGG. True values are shown in rows and predicted values are shown in columns. The results indicate the ability of the proposed model to accurately classify LGG and HGG. As can be seen in Figure 8, XGBoost, when trained with features extracted from the proposed CNN model has a high number of true positives (TP =64) and a very low number of false negatives (FN =2). This indicates that the proposed model successfully identified majority of positive cases, with only a few instances of misclassification. Such a high TP rate is particularly crucial for accurately detecting the presence of HGG, that is vital for timely and appropriate treatment. The model’s low FN rate further underscores its reliability, minimizing the risk of overlooking patients who require critical medical attention.

Figure 8 Confusion matrix for ML models, SVM, decision tree, random forest, and XGBoost when trained on features extracted from the proposed CNN method. The label 1 represents high-grade glioma and 0 represents low grade glioma. Rows correspond to true values and columns correspond to predicted values. The results demonstrate the proposed model’s ability to learn informative features that can accurately classify low-grade and high-grade glioma. CNN, convolutional neural network; SVM, support vector machine; DT, decision tree; RF, random forest; XGB/XGBoost, Xtreme gradient boosting; ML, machine learning.

To further evaluate the effectiveness of the proposed method, we computed the confidence interval (CI) to quantify the uncertainty of the model’s performance. The F1-score 95% CI of XGBoost algorithm trained on radiomic features is 68±7. The 95% CI of XGBoost algorithm trained on features learned by the autoencoder network is 83±5. The 95% CI of XGBoost algorithm trained on features learned by the stacked 2D-CNN network is 89±4. The 95% CI of XGBoost algorithm trained on features learned by the stacked U-net and the proposed network is 98±1. From these results, it is clear that the 95% CI for the stacked U-net and the proposed network are significantly low compared to the other models. These results highlight the robustness of the features extracted by the proposed network for glioma grade classification.

From the results presented in Table 1, it was clear that the performance of U-Net similar to the proposed method. The comparison of U-Net in terms of number of trainable parameters and training and testing time are given in Table 2.

The U-Net utilized had approximately 470 million parameters leading to training time of approximately 7 hours and 14.7 seconds for extraction of learned features from each test sample. On the other hand, the proposed CNN had about 33 million parameters and the training was completed in an hour and 30 minutes and it took around 2.3 seconds to extract learned features from the test set. Note that both the models were run for 20 epochs and all the experiments were conducted on an Intel(R) Xeon(R) Gold 6144 CPU @ 3.50 GHz server with a total RAM of 64 GB. It was evident from Table 2, that the proposed model is simple and has about 14 times less trainable parameters compared to the U-Net. Note that the low parameter count also reduces the risk of overfitting. In addition to its simplicity, the proposed method demonstrated impressive results in determining features that are relevant for accurate glioma grade prediction. In contrast, methods like U-Net, while capable of achieving high performance, come with the drawback of huge number of trainable parameters with a higher computational burden. The proposed method significantly reduced the training and testing time, making it a practical choice for faster model development and evaluation. These observations highlight the trade-off between model complexity, training and testing time, and predictive performance, offering valuable insights for the selection of an appropriate approach.

Discussion

In this study, we proposed a CNN to learn features that are valuable for glioma grade classification. The extracted features are then used to train ML models, SVM, DT, RF, and XGBoost for prediction of grade. The proposed feature extraction network was compared with different architectures including autoencoder network, stacked 2D-CNN, and stacked U-Net.

The model’s effectiveness was assessed based on accuracy, precision, recall, F1-score, specificity, and NPV. The stacked U-Net and the proposed method demonstrated higher performance compared to autoencoder and stacked 2D-CNN networks, highlighting the potential of advanced CNN architectures in effectively predicting glioma grades. This evaluation forms the basis for integrating CNN features with traditional ML models for determining glioma grade.

The performance of using only CNN’s for both feature extraction and classification is presented in Table 3. It can be seen that the performance of proposed CNN network and stacked U-Net are similar and are better compared to autoencoder and stacked 2D-CNN models. However, it is important to note that the performance of the proposed network when used for feature extraction (F1-score =98) is better than using it for grade prediction (F1-score =92). These results demonstrate the significance of using CNN’s for extracting features and then building ML models for grade classification.

To demonstrate the calibration of the proposed method, calibration plot was presented in Figure 9. It can be observed that the model is well calibrated at lower probabilities and the model has overestimated at higher probabilities (0.7–0.9).

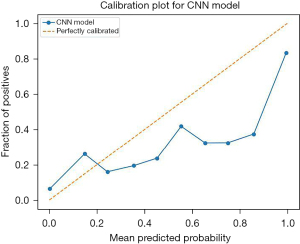

Figure 9 Calibration plot of the proposed model. The model is well calibrated at lower probabilities and overestimates at higher probabilities. CNN, convolutional neural network.

Our findings, as detailed in “Results” section, demonstrate the efficacy of our proposed CNN method in accurately predicting glioma grade. To successfully integrate this technology into clinical practice, a series of steps must be undertaken, including extensive validation of the model against larger and more diverse datasets, ensuring compliance with regulatory standards, and training healthcare professionals to effectively utilize this technology. Furthermore, the integration of our model into existing diagnostic workflow would necessitate collaboration with medical practitioners to ensure seamless implementation.

Conclusions

In this work, we explored various feature extraction methods for glioma grade classification on the BraTS2018 dataset. The feature extraction techniques include radiomic features, autoencoder trained on individual sequences, CNN trained on stacked sequences, U-Net trained on stacked sequences, and CNN trained on individual sequences (proposed method). The ML methods include SVM, DT, RF, and XGBoost that were trained on radiomic and learned features. The performance of ML models trained with learnable features achieved at least a 19% higher F1-score compared to the models trained with radiomic features. The ML models trained with features extracted from the U-Net model had achieved an F1-score of 98%, which is at least 6% higher compared to the models trained with features extracted from autoencoder and stacked CNN network. The proposed method performed similar to U-Net, but with about 14 times less trainable parameters and 6 times faster in extracting features, making it a simple and a computationally efficient approach. In conclusion, autoencoder model focuses on the image reconstruction task and was not an efficient approach for learning features valuable for glioma grading. In addition, features learned from the model trained on individual sequences performed better than the features learned from models trained on stacked sequences. These insights pave a way for tailored treatment strategies and the ultimate goal of improving patient care.
